C & Z PURLINS

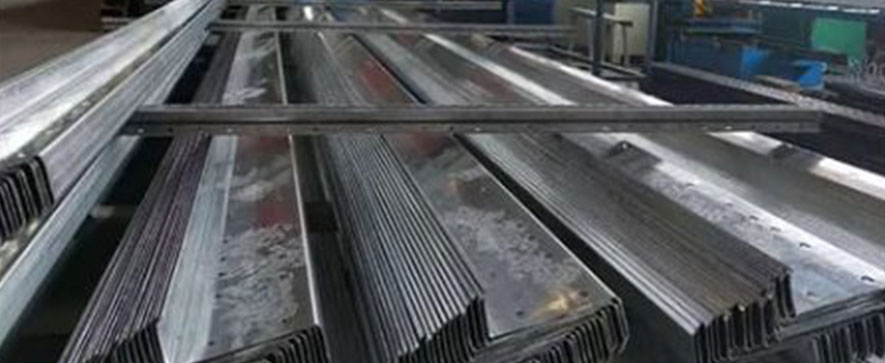

Kesari Purlins and Girts are roll-formed from Hi-Tensile Galvanised / Hot Rolled steel. They are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures. Purlins and Girts are available in a range of different sizes and configurations.
Technical Specifications
C-sections : have equal flanges and may be used in single spans and unlapped continuous spans in multi-bay buildings. Their freestanding stable shape allows easy handling and storage and is easily adapted for use in small and medium sized buildings as structural framework.
Web |
Flange |
Lip |
Thickness |
|---|---|---|---|
160 |
60 |
20 |
1.2 to 3.0 mm
|
200 |
70 |
20 |
1.2 to 3.0 mm |
250 |
80 |
20 |
1.2 to 3.0 mm |
300 |
70 |
20 |
1.2 to 3.0 mm |
300 |
50 |
20 |
1.2 to 3.0 mm |
Technical Specifications
Z-sections : feature one broad and one narrow flange allowing the two sections to fit together snugly, making them suitable for lapping. Z sections of the same depth and different thickness’ can be lapped in any combination. Purlins and Girts that are lapped form a structurally continuous line along the length of the building, a factor that contributes significantly to the & Z Purlins reduction in building costs. we are also able to customise sections outside the standard range to suit your individual requirements
Web |
Flange 1 |
Flange 2 |
Lip |
Thickness |
|---|---|---|---|---|
200 |
50 |
54 |
20
|
1.2 to 3.0 mm |
160 |
70 |
60 |
20 |
1.2 to 3.0 mm |
200 |
70 |
60 |
20 |
1.2 to 3.0 mm |
220 |
80 |
70 |
20 |
1.2 to 3.0 mm |
250 |
80 |
70 |
20 |
1.2 to 3.0 mm |
300 |
80 |
70 |
20 |
1.2 to 3.0 mm |
